Tested and approved.

That’s really all that needs to be said.

When transporting diagnostic specimens – UN 3373 – there is no room for uncertainty or doubt. That is why we offer the absolute best and most reliable transport solution – tested and approved on all parameters. It is your guarantee for a safe transport. Below you can read more about what we can offer.
TRANSPORTBOXES AND ENVELOPES TO UN 3373

TRANSPORT BOX 650 FOR ROAD TRANSPORT OF UN 3373

This transport system is currently used between hospitals, laboratories, medical centers and specialist clinics in most Danish regions. The transport boxes can contain up to 132 test tubes. These are placed in washable inserts and together with an absorbent cloth these are placed in a plastic bag that is closed with a clamp. The bag is then placed in the transport box, 650.

The test tubes must be tested and approved to 95 kPa if used alone. Alternatively, the test tubes can be put into a pressure test-approved transport tube.

The transport boxes are available in 2 sizes:

#2001612A: 330 x 245 x 155 mm for 2 pcs. small foam inserts

#2001612B: 395 x 295 x 180 mm for 3 pcs. small foam inserts

Tested and approved for UN 3373 according to both ADR package instruction 650 and ICAO-TI/ IATA/DGR packing instruction 650.

CARTON BOX FOR FOREIGN SHIPMENTS OF UN 3373

These boxes can hold from 1 to 12 transport tubes. The sample tubes are placed together with a small absorbent strip in the obligatory transport tube, which is then packed in the box. This complies with IATA / DGR / ADR package instruction 650.

The carton box has the dimensions: 180 x 100 x 100 mm (external dimensions)

The carton boxes are all marked according to the IATA / DGR / ADR rules, with the diamond in 50 x 50 mm size with the text: UN 3373 inside. Below is the text "BIOLOGICAL SUBSTANCE – Category B".

ENVELOPES FOR DOMESTIC LETTER POST BY UN 3373

These bubble wrap envelopes can hold from 1 to 8 transport tubes. The sample tubes are placed with a small absorbent strip into the mandatory transport tube, which is then packed into the envelope. This ensures that ADR package instruction 650 is complied with.

The envelopes are available in 2 sizes:

20001625: 220 x 260 mm

2001625L: 180 x 260 mm

The envelopes are all marked according to the ADR rules, w/ the diamond in 50 x 50 mm size with the text: UN 3373 inside. Below is the text "BIOLOGICAL SUBSTANCE - category B".

The envelopes can also be delivered with your desired recipient address and “Postage payed by recipient”. They can be spruced up a bit with a color indication of your choice – plus of course the mandatory texts according to the ADR rules.

Read more about all our innovative packaging solutions below.

Transport box 650 for road transport of UN 3373

This transport system is currently used between hospitals, laboratories, medical centers and specialist clinics in most Danish regions. The transport boxes can contain up to 132 test tubes. These are placed in washable inserts and together with an absorbent cloth these are placed in a plastic bag that is closed with a clamp. The bag is then placed in the transport box, 650.

The test tubes must be tested and approved to 95 kPa if used alone. Alternatively, the test tubes can be put into a pressure test-approved transport tube.

Carton box for foreign shipments of UN 3373

These boxes can hold from 1 to 12 transport tubes. The sample tubes are placed together with a small absorbent strip in the obligatory transport tube, which is then packed in the box. This complies with IATA / DGR / ADR package instruction 650.

The carton box has the dimensions: 180 x 100 x 100 mm (external dimensions)

The carton boxes are all marked according to the IATA / DGR / ADR rules, with the diamond in 50 x 50 mm size with the text: UN 3373 inside. Below is the text "BIOLOGICAL SUBSTANCE – Category B".

Envelopes for domestic letter post by UN 3373

These bubble wrap envelopes can hold from 1 to 8 transport tubes. The sample tubes are placed with a small absorbent strip into the mandatory transport tube, which is then packed into the envelope. This ensures that ADR package instruction 650 is complied with.

The shipping envelope has been tested and approved in accordance with the ADR rules for UN 3373 - package instruction 650.

The envelopes can also be delivered with your desired recipient address and “Postage payed by recipient”. They can be spruced up a bit with a color indication of your choice – plus of course the mandatory texts according to the ADR rules.

Transport container for the most dangerous samples

This transport container has been tested and approved for packing and shipping of both UN 2900 and UN 2814 (which is infectious to animals and humans) and follows IATA / DGR packing instruction 602. Note that this packaging has been drop tested from 9 meters and approved for all infectious samples – including Ebola.

After loading test tubes, the transport container is placed in a shipping box with the correct marking and is ready for departure.

Refrigerated / frozen shipments of diagnostic samples – UN 3373

We carry a large selection of refrigerated boxes and specially designed shipping boxes. If you need to send your samples as refrigerated / frozen shipments, you must first pack the samples in one of the above solutions (transport box, envelopes or transport containers) before they are subsequently packed in a refrigerated box, which will function as an "OVERPACK" with the necessary labeling etc.

TRANSPORTBOX 650 A - INSERTS

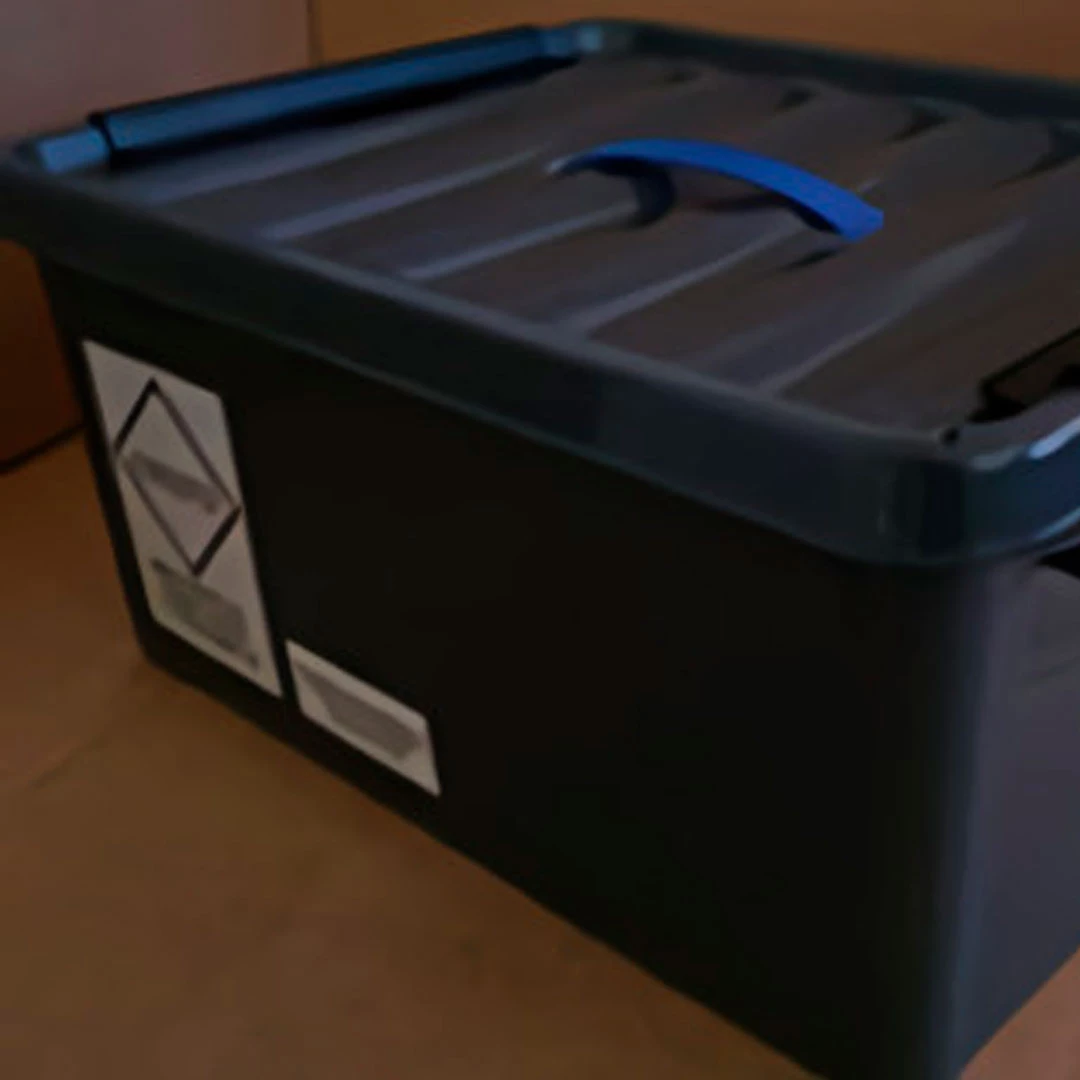

Transport box 650 A for road transport

Transport box 650 A for diagnostic tests, P 650

Item number: 2001612A

Delivery time: 1-3 days

Exterior dimensions: 330 x 245 x 155 mm

Number per package: 10 pcs.

The color of the boxes may vary!

Insert for transport box 650 A

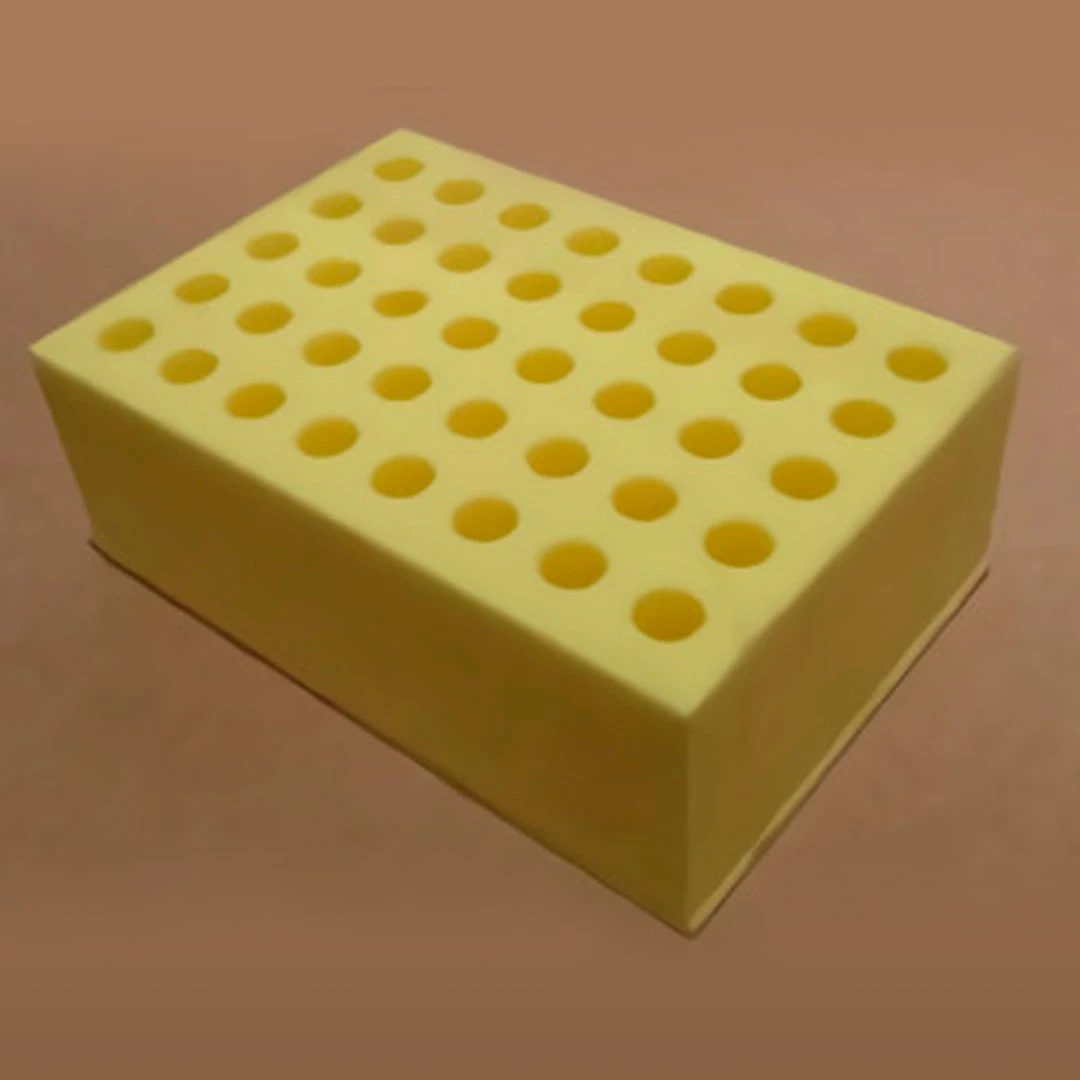

Insert for transport box 650 A with 40 pcs. Ø13 mm holes

Item number: 2001609B

Delivery time: 1-3 days

Dimensions: 178 x 122 x 65 mm

Number per package: 10 pcs.

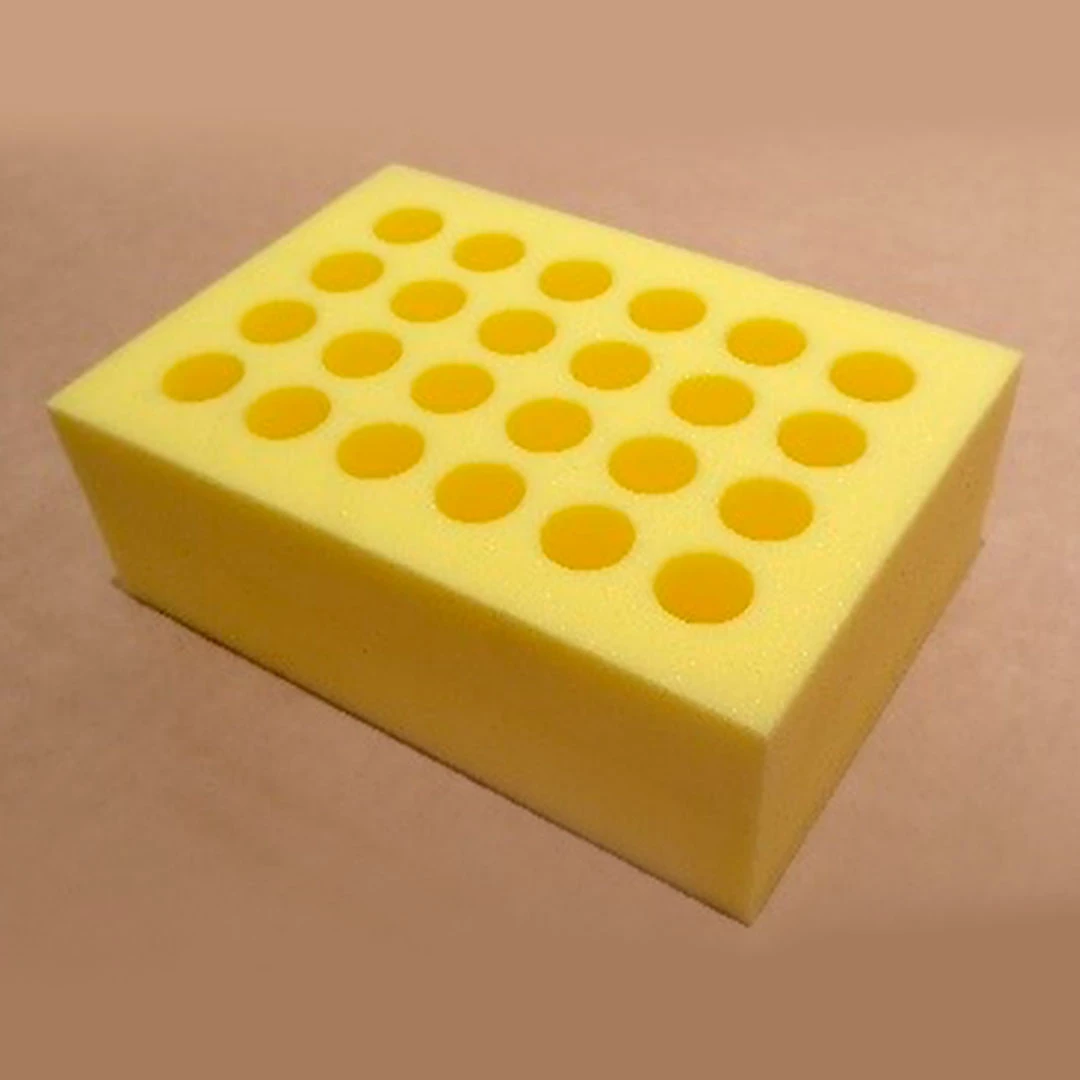

Insert for transport box 650 A

Insert for transport box 650 A with 24 pcs. Ø18 mm holes

Item number: 2001609A

Delivery time: 1-3 days

Dimensions: 178 x 122 x 65 mm

Number per package: 10 pcs.

Insert for transport box 650 A

Insert for transport box 650 A with 35 pcs. Ø15 mm holes

Item number: 2001609C

Delivery time: 1-3 days

Dimensions: 178 x 122 x 65 mm

Number per package: 10 pcs.

Insert for transport box 650 A

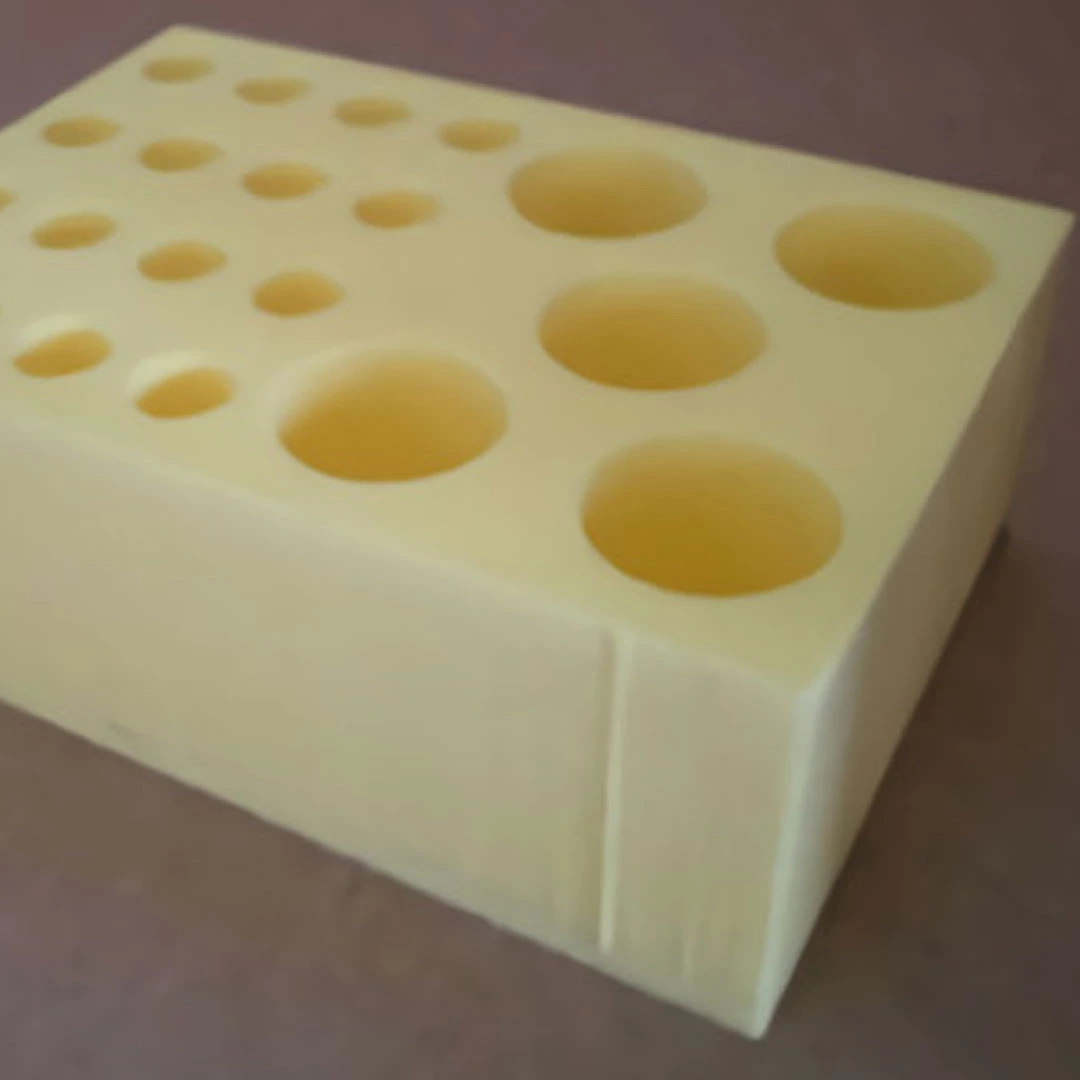

Insert for transport box 650 A with 5 pcs. Ø32 mm and 16 pcs. Ø14 mm holes

Item number: 2001609D

Delivery time: 1-3 days

Dimensions: 178 x 122 x 65 mm

Number per package: 10 pcs.

Insert for transport box 650 A

Insert for transport box 650 A with 20 pcs. Ø13 mm and 12 pcs. Ø18 mm holes

Item number: 2001609E

Delivery time: 1-3 days

Dimensions: 178 x 122 x 65 mm

Number per package: 10 pcs.

TRANSPORTBOX 650 B - INSERTS

Transport box 650 B for diagnostic tests, P 650

Item number: 2001612B

Delivery time: 1-3 days

Exterior dimensions: 395 x 295 x 180 mm

Number per package: 10 pcs.

The color of the boxes may vary!

Insert for transport box 650 B

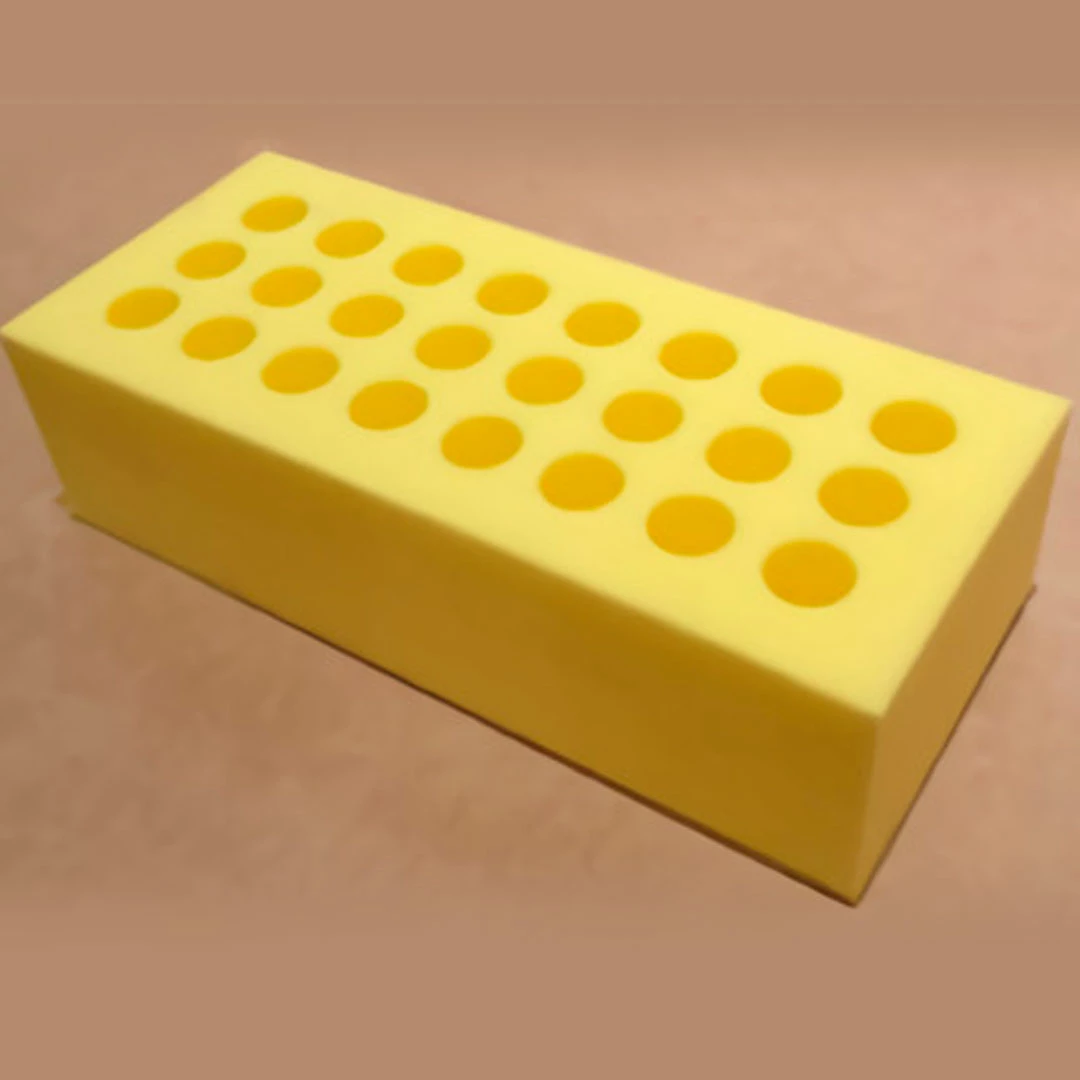

Insert for transport box 650 B with 24 pcs. Ø 18 mm holes

Item number: 2001609Q

Delivery time: 1-3 days

Dimensions: 240 x 100 x 65 mm

Number per package: 12 pcs.

Insert for transport box 650 B

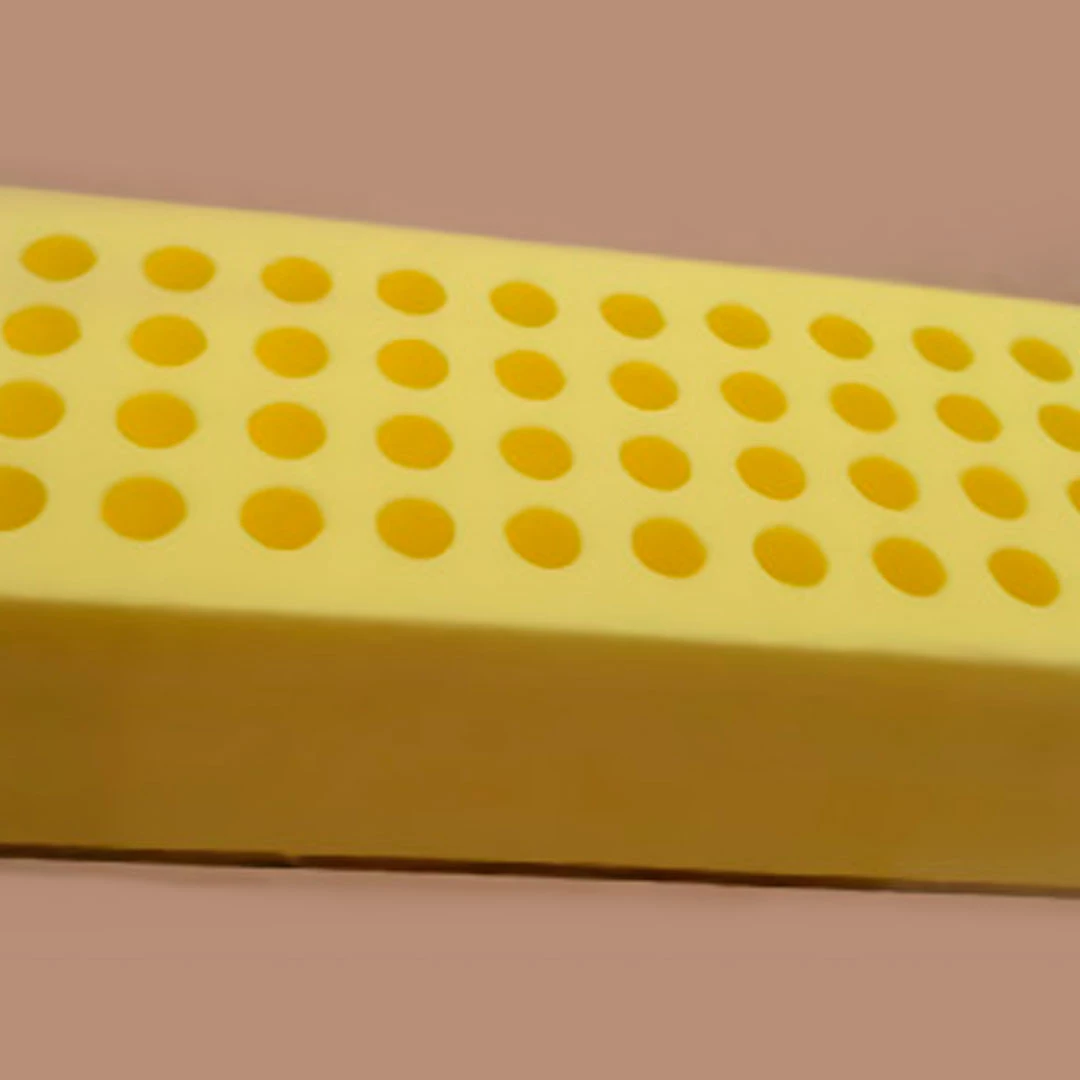

Insert for transport box 650 B with 40 pcs. Ø 13 mm holes

Item number: 2001609R

Delivery time: 1-3 days

Dimensions: 240 x 100 x 65 mm

Number per package: 12 pcs.

Insert for transport box 650 B

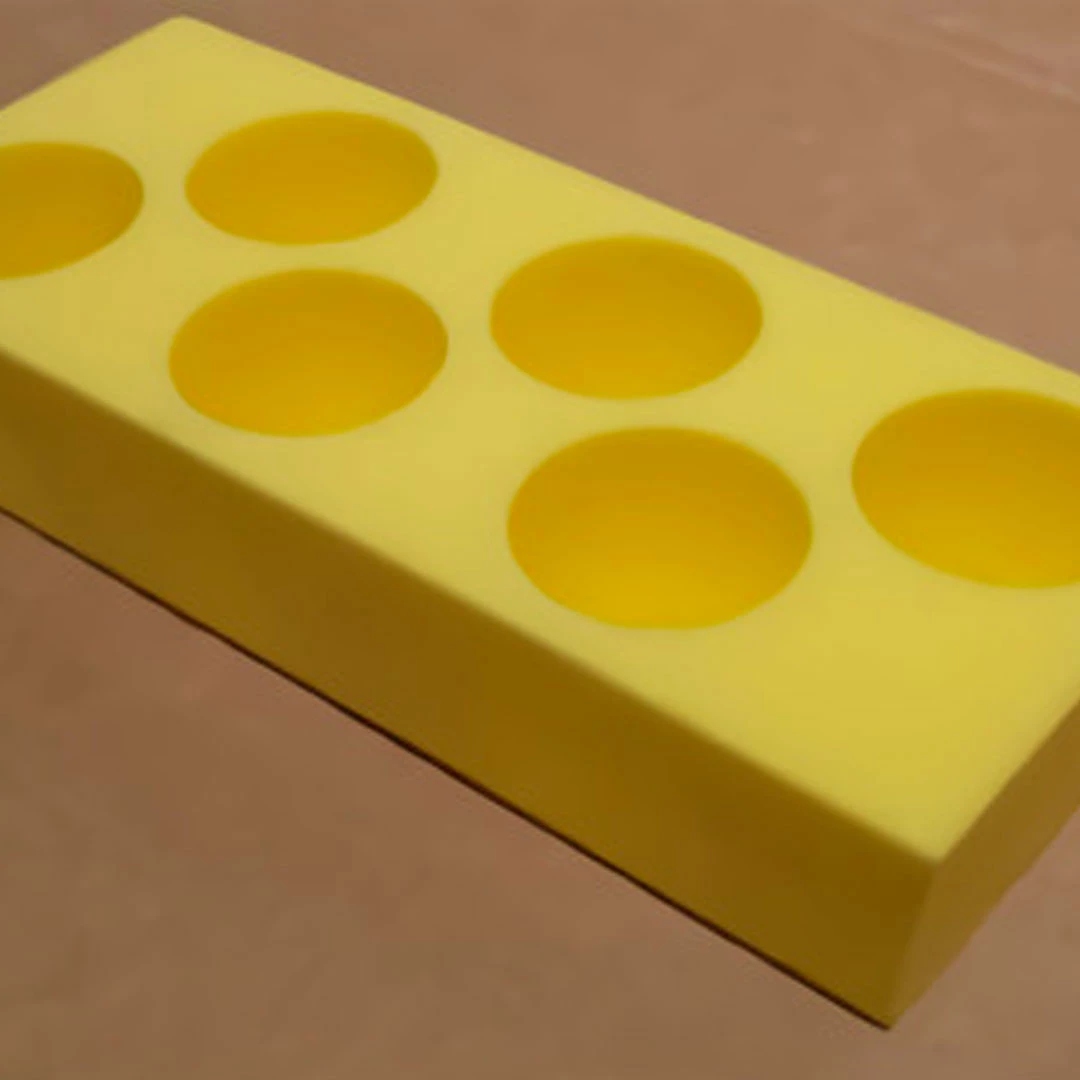

Insert for transport box 650 B with 6 pcs. Ø42 mm holes for blood culture tubes

Item number: 2001609S

Delivery time: 1-3 days

Dimensions: 240 x 100 x 65

Number per package: 12 pcs.

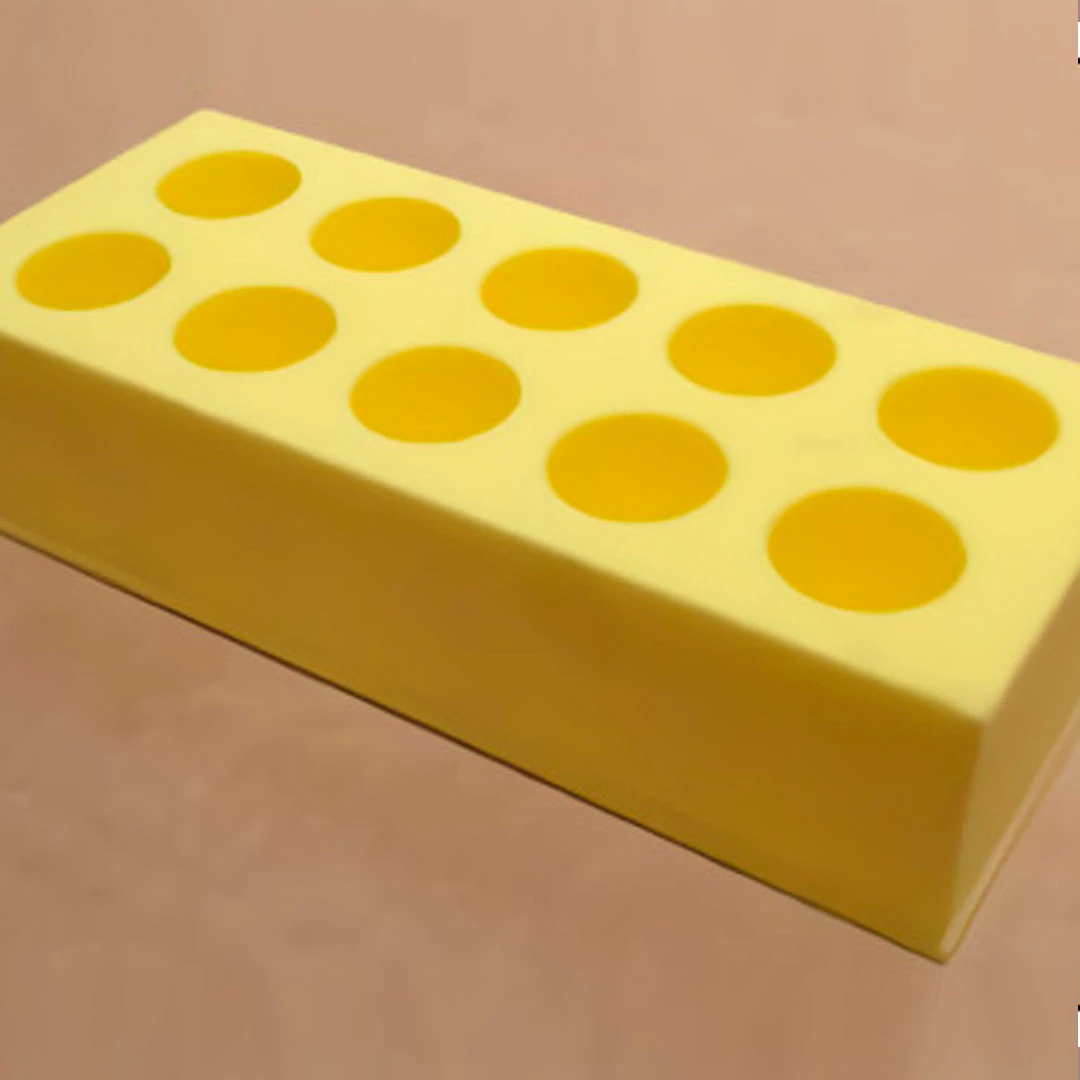

Insert for transport box 650 B

Insert for transport box 650 B with 10 pcs. Ø 32 mm holes

Item number: 2001609T

Delivery time: 1-3 days

Dimensions: 240 x 100 x 65

Number per package: 12 pcs.

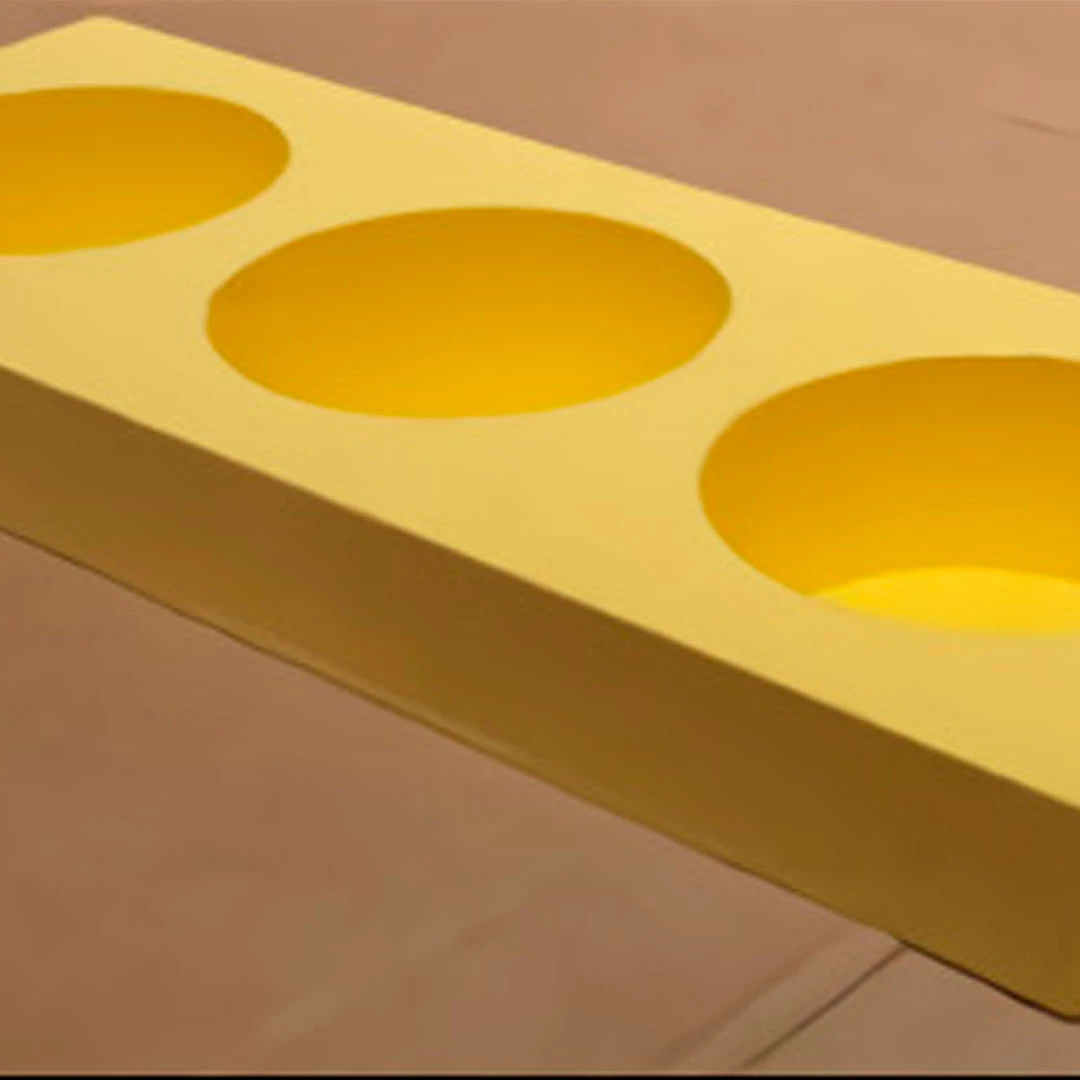

Insert for transport box 650 B

Insert for transport box 650 B – module 2 with 3 pcs. Ø 82 mm holes

Item number: 2001609Å

Delivery time: 1-3 days

Dimensions: 320 x 122 x 95 mm

Number per package: 6 pcs.

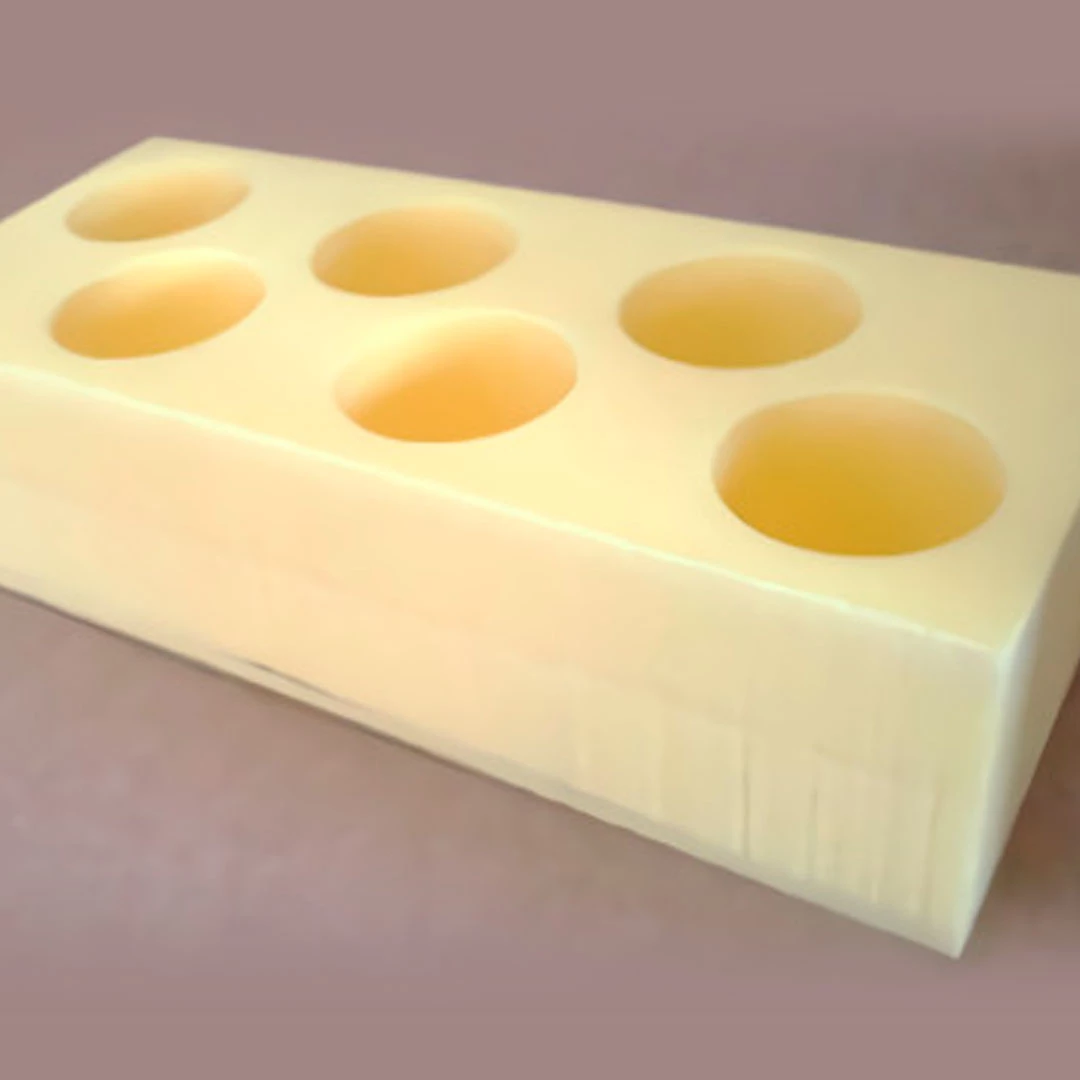

Insert for transport box 650 B

Insert for transport box 650 B with 6 pcs. Ø 45 mm holes

Item number: 2001609V

Delivery time: 1-3 days

Dimensions: 240 x 100 x 65

Number per package: 12 pcs.

TRANSPORTBOX 650 A + B – ACCESSORIES

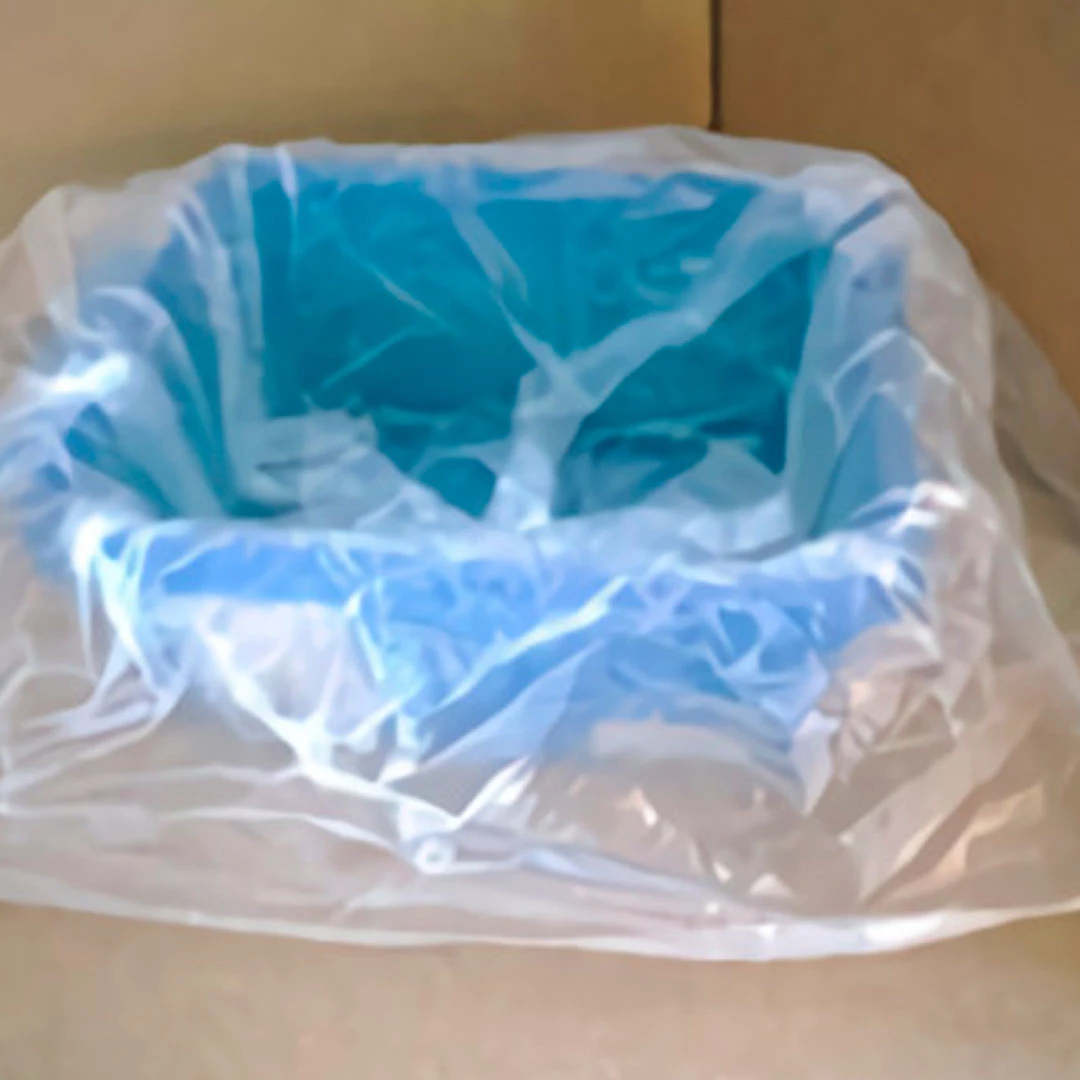

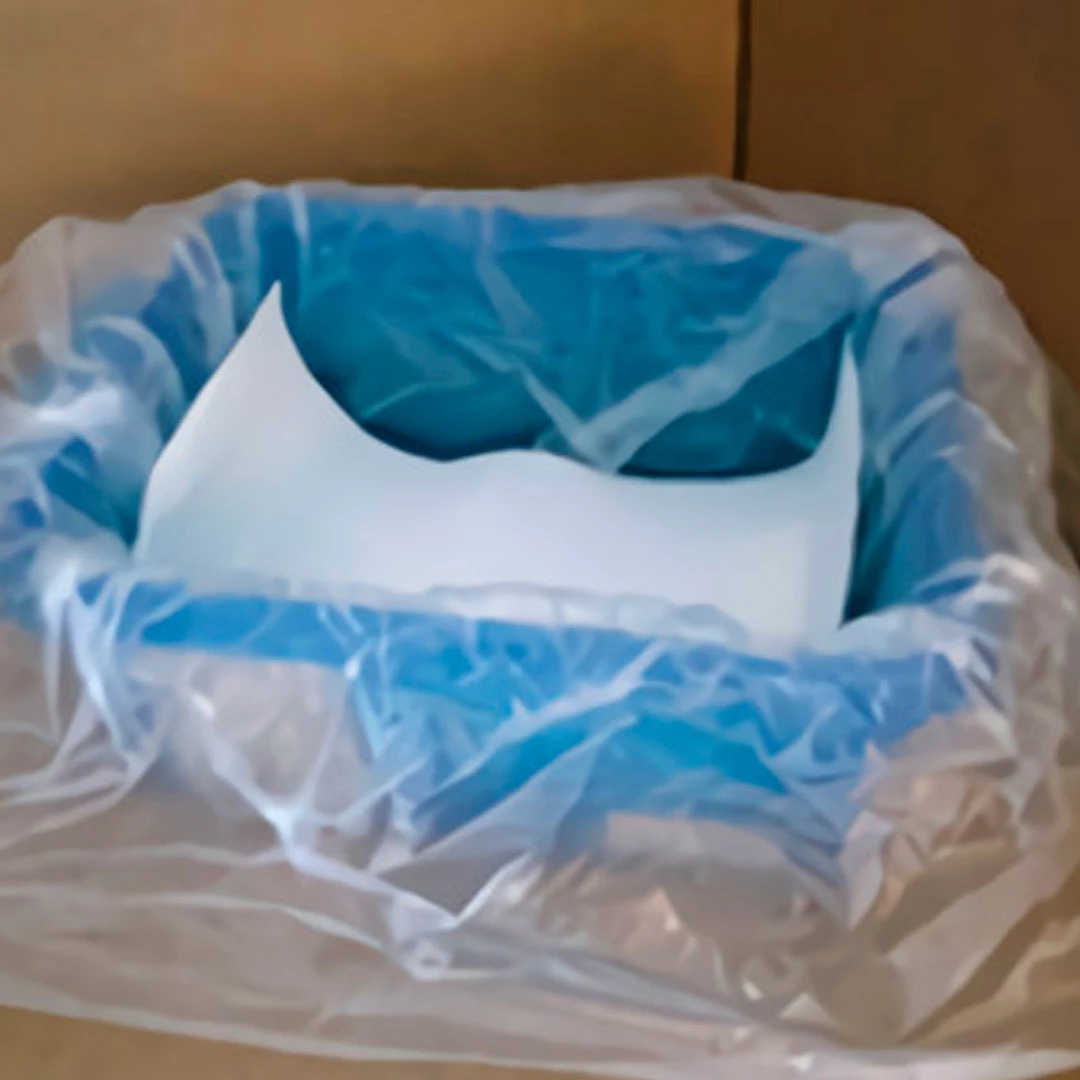

Plastic bag

Plastic bag, "secondary packaging" fits transport box 650 A & B

Item number: 2001613A

Delivery time: 1-3 days

Dimensions: 450/350 x 580 mm

Number per package: 500 pcs.

Absorption cloth

Absorption cloth 200 ml. Fits transport box 650 A & B

Item number: 20001610

Delivery time: 1-3 days

Dimensions: 200 x 400 mm

Number per package: 1080 pcs.

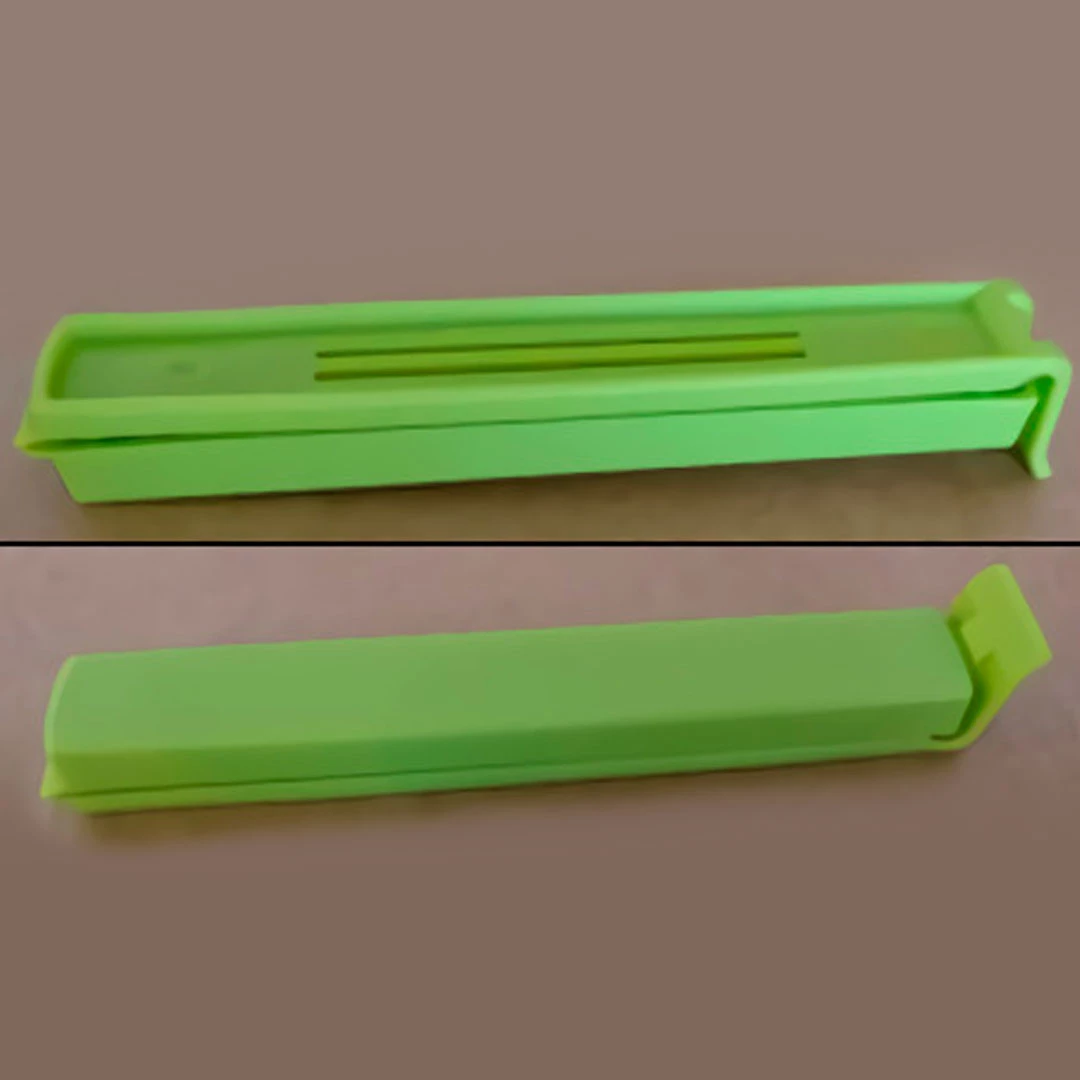

Plastic clamp

Plastic clamp, nylon, for the plastic bag in transport box 650

Item number: 2001613B

Delivery time: 1-3 days

Dimensions: 110 mm

Number per package: 480 pcs.

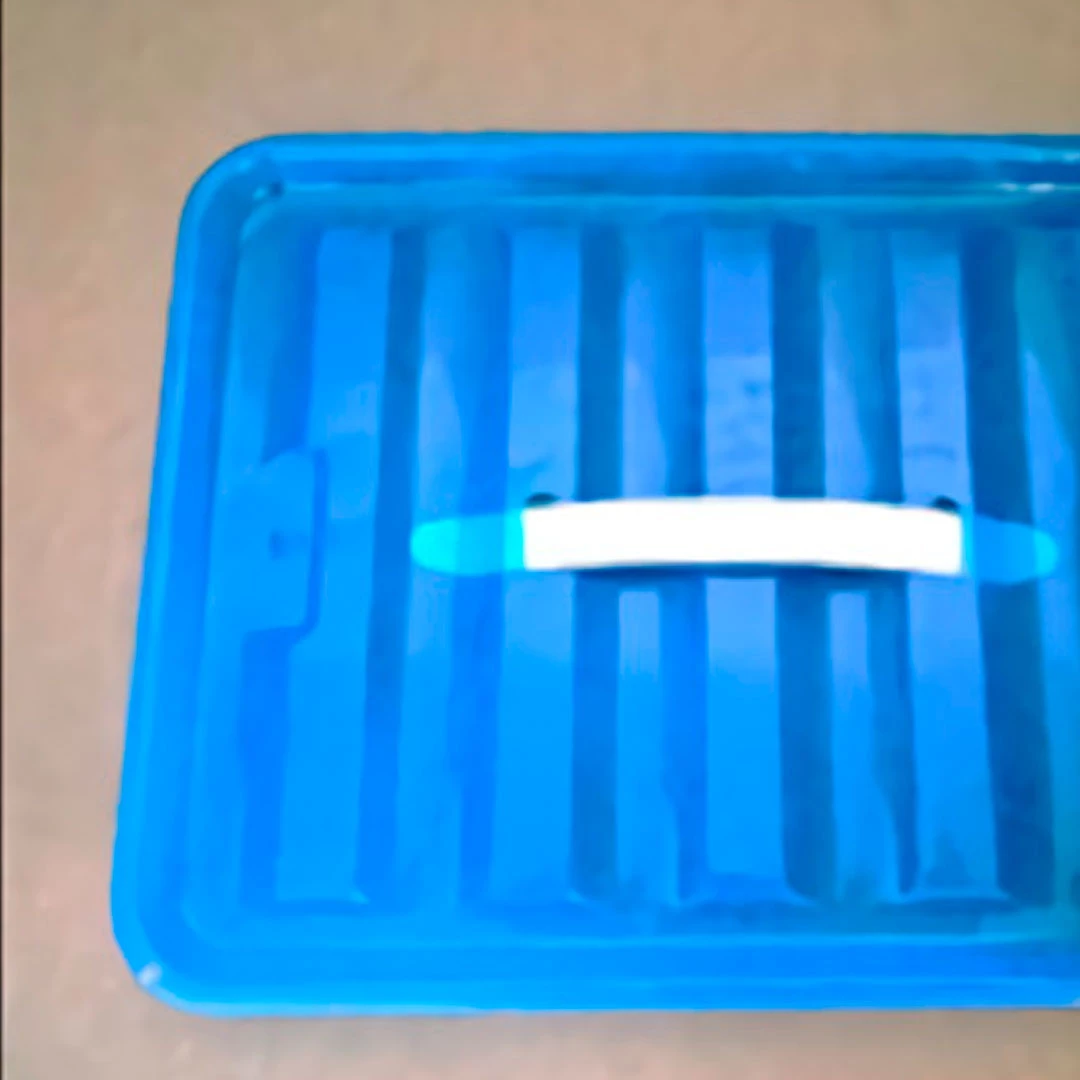

Plastic handle

Plastic handle, white, strong – for transport box 650 A + B

Item number: 2001612E

Delivery time: 1-3 days

Dimensions: 180 mm

Number per package: 1 pc.

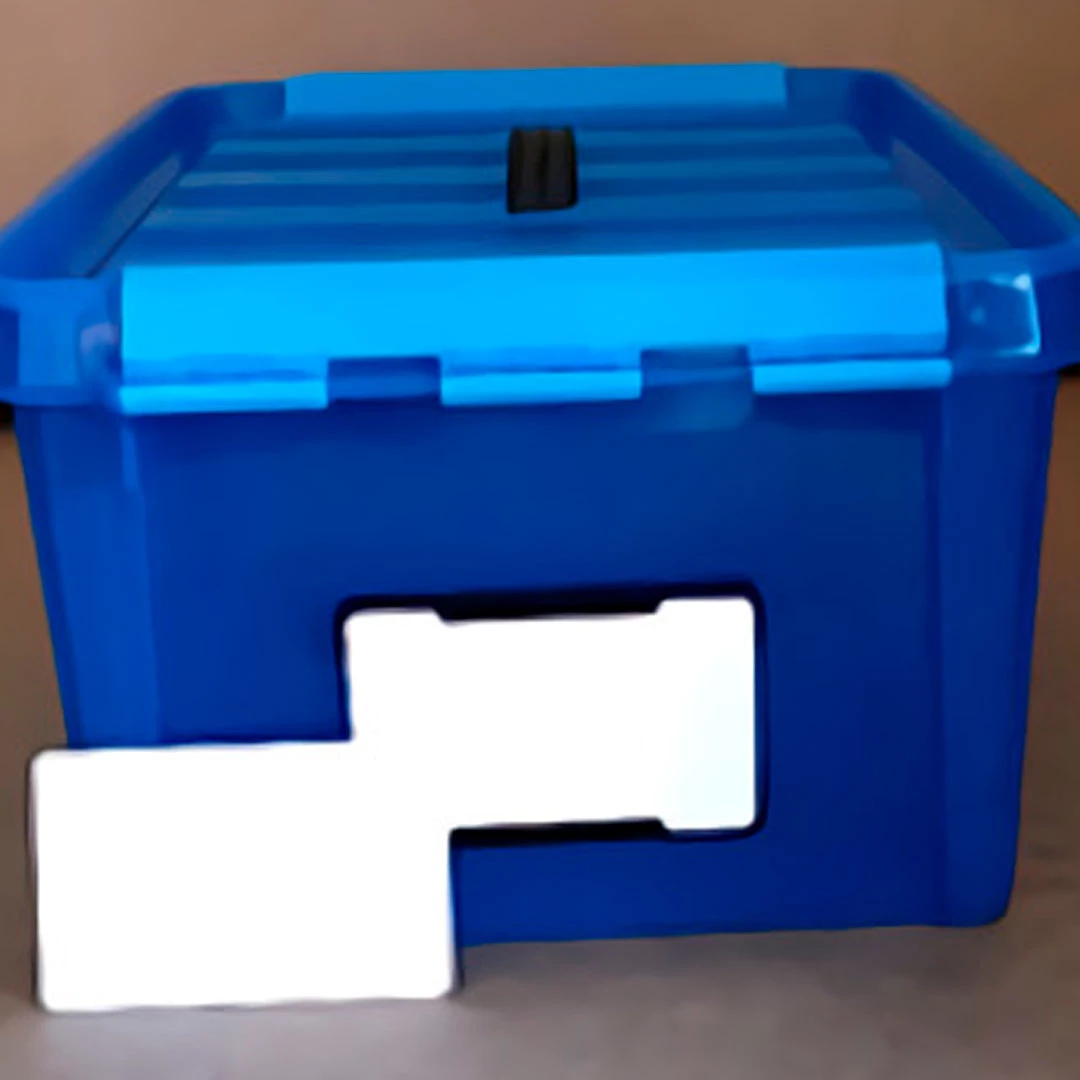

Address plate

Address plate, white plastic for transport box 650 A + B

Item number: 2001612C

Delivery time: 1-3 days

Dimensions: 86 x 55 x 1 mm

Number per package: 10 pcs.

ENVELOPES AND CARTON + ACCESSORIES

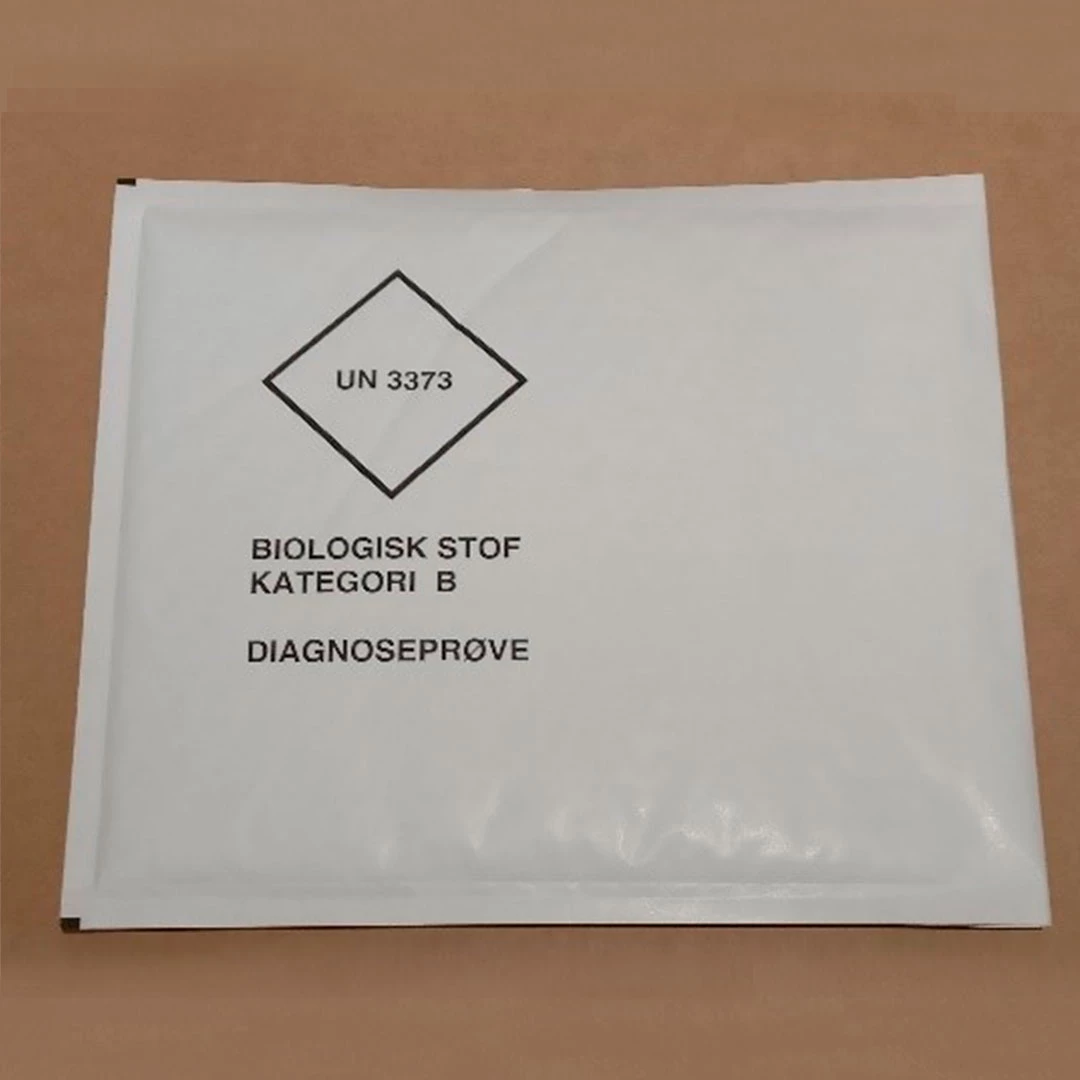

Shipping envelopes

P 650 shipping envelopes, for diagnostic tests – max 8 transport pipes

Item number: 20001625

Delivery time: 1-3 days

Dimensions: 220 x 260 mm

Number per package: 100 pcs.

Shipping envelopes

P 650 shipping envelopes, for diagnostic tests – max 5 transport pipes

Item number: 2001625L

Delivery time: 1-3 days

Dimensions: 180 x 260 mm

Number per package: 150 pcs.

Transport tube with lid

Transport tube with lid, Ø 22 mm, 95 kPa approved for test tube

Item number: 20001605

Delivery time: 1-3 days

Dimensions: Ø 28 x 120 mm

Number per package: 850 pcs.

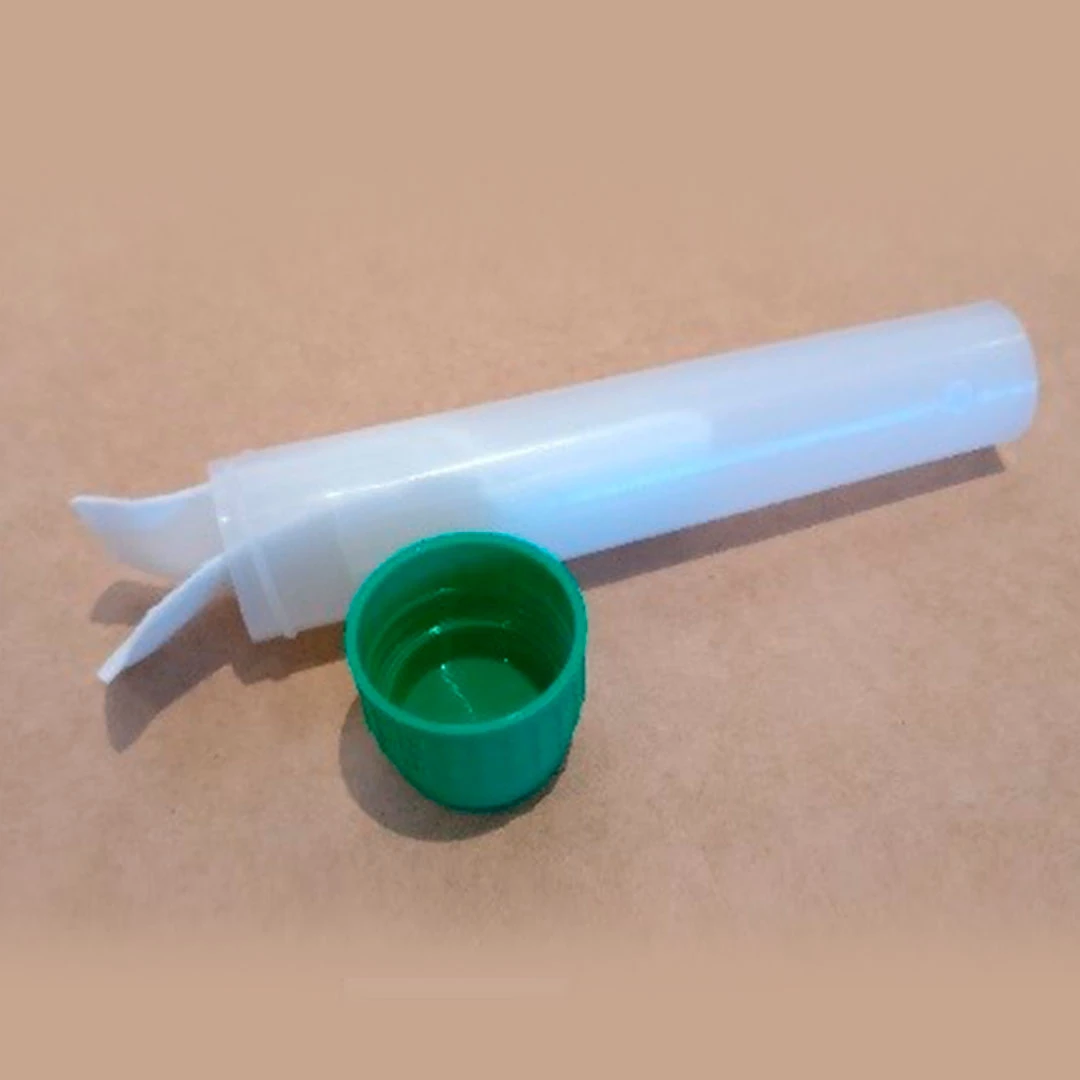

Transport tube with lid and with absorbent strip

Transport tube with lid, 95 kPa approved with absorbent strip

Item number: 20001607

Delivery time: 1-3 days

Dimensions: Ø 28 x 120 mm

Number per package: 850 pcs.

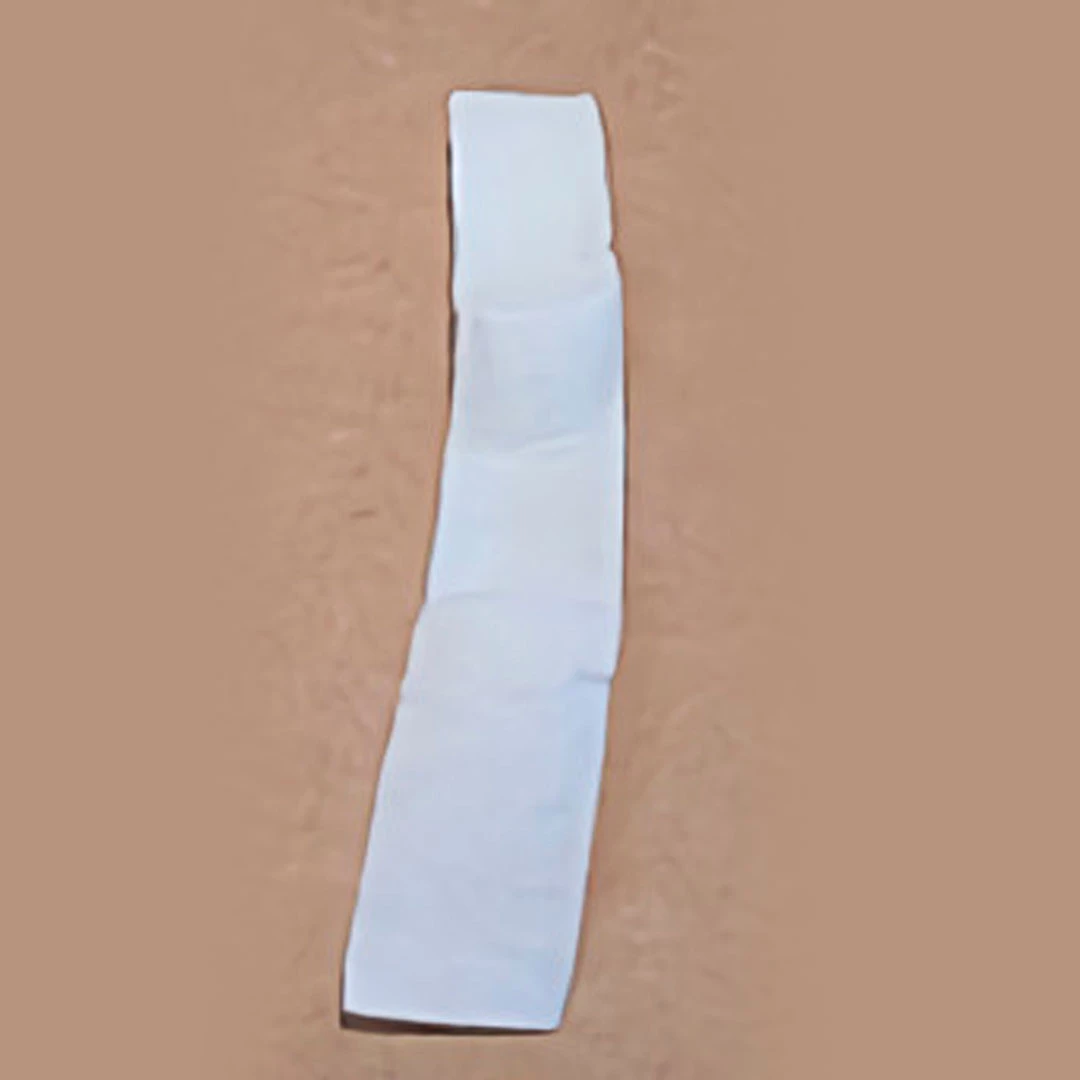

Absorbent strip

Absorbent strip 12 ml, fits transport tubes

Item number: 20001606

Delivery time: 1-3 days

Dimensions: 20 x 180 mm

Number per package: 280 pcs.

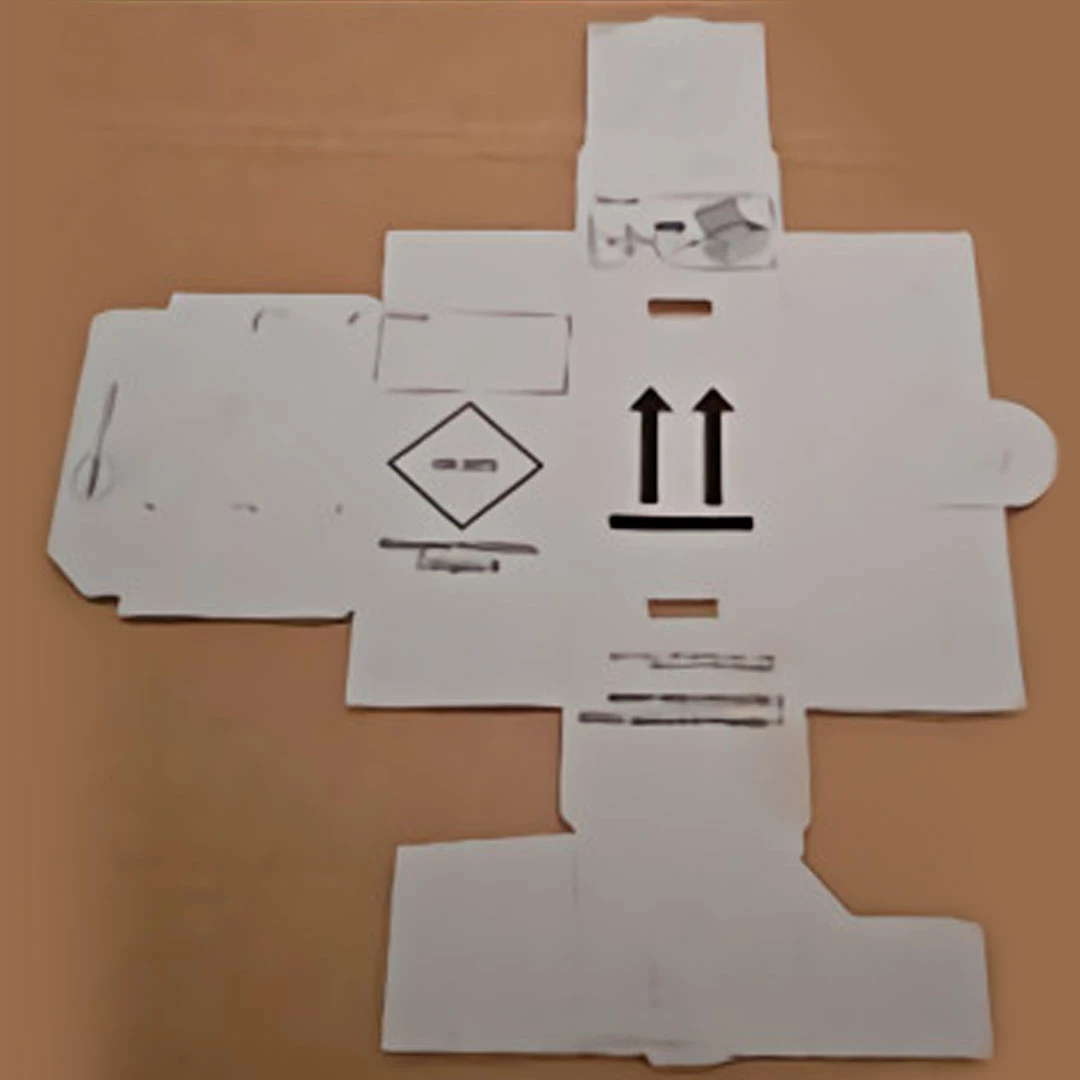

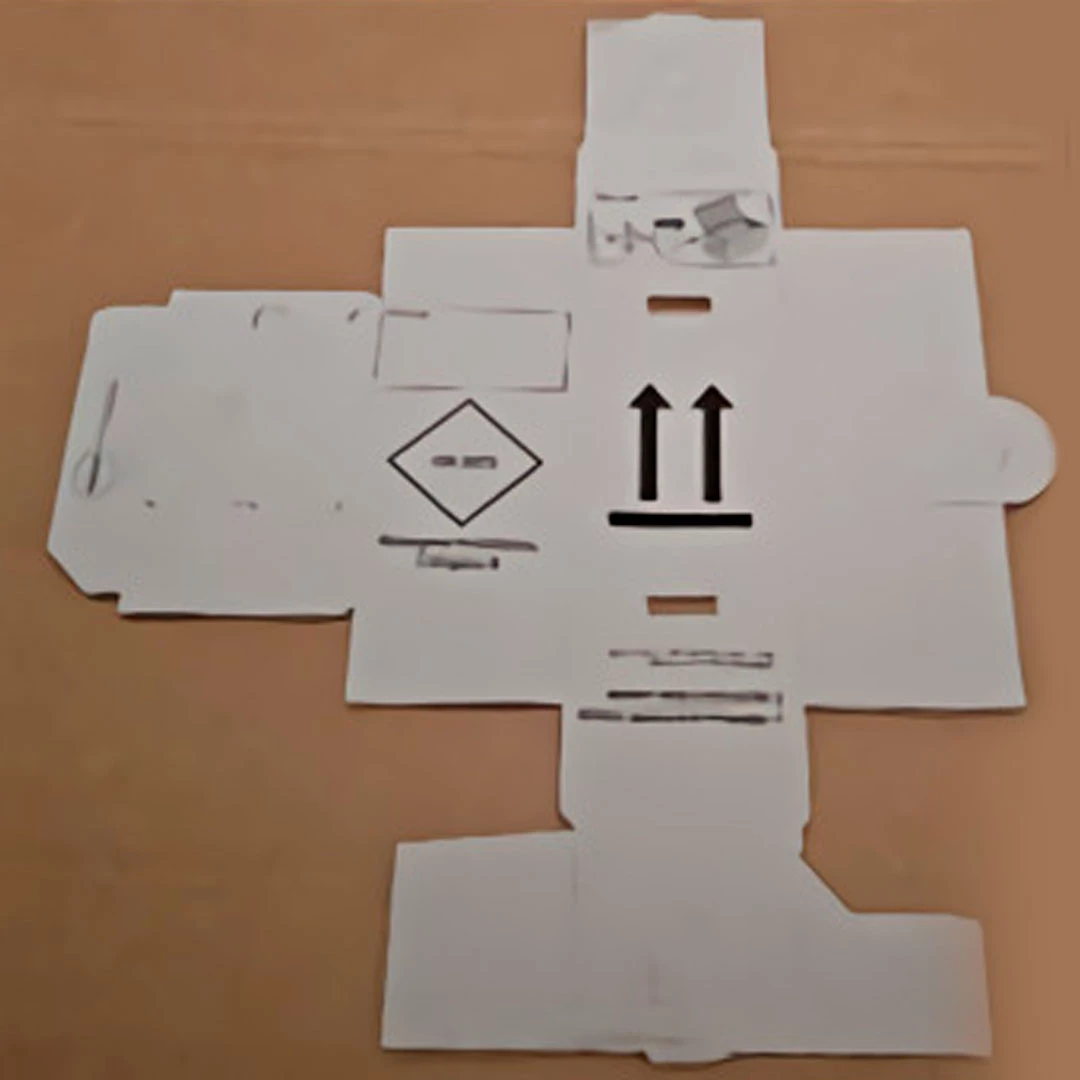

Carton – UN 3373

Carton, marked with UN 3373 fits 500 ml. transport container or 12 pcs. transport tubes (20001605 + 20001606 or 20001607). Can be used for both ADR and ICAO / IATA rules.

Item number: 2001611B

Delivery time: 1-3 days

Exterior dimensions: 180 x 100 x 100 mm

Number per package: 12 pcs.

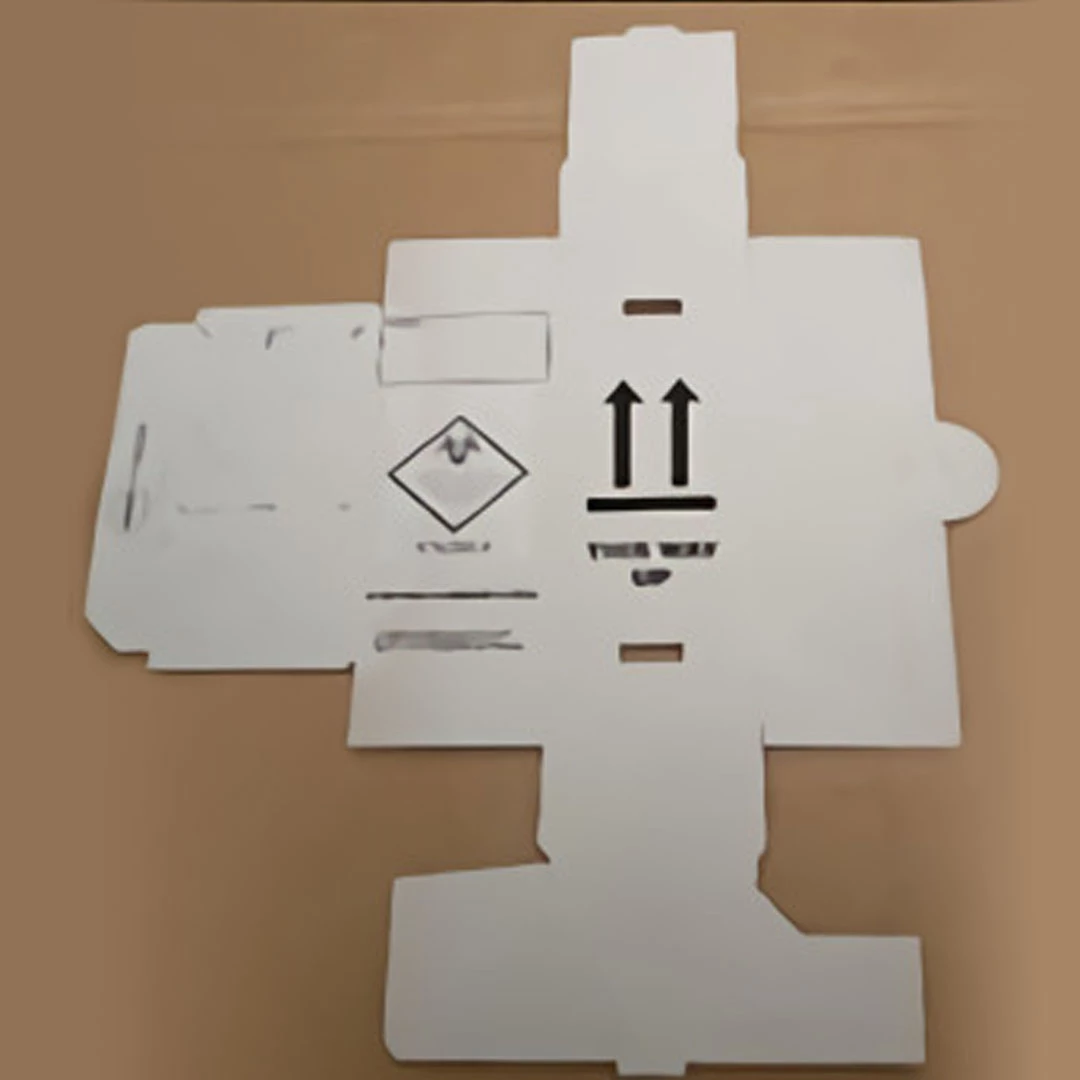

Carton

Carton, marked with class 6.2 fits 500 ml. transport container for really dangerous goods

Item number: 20001611

Delivery time: 1-3 days

Exterior dimensions: 180 x 100 x 100 mm

Number per package: 12 pcs.

Carton

Carton, marked with UN 3373, fits 800 ml transport container

Item number: 2001611C

Delivery time: 7 days

Dimensions: 225 x 100 x 100 mm

Number per package: 12 pcs.

Carton

Carton, UN marked with class 6.2, fits 800 ml transport container

Item number: 2001611A

Delivery time: 7 days

Dimensions: 225 x 100 x 100 mm

Number per package: 12 pcs.

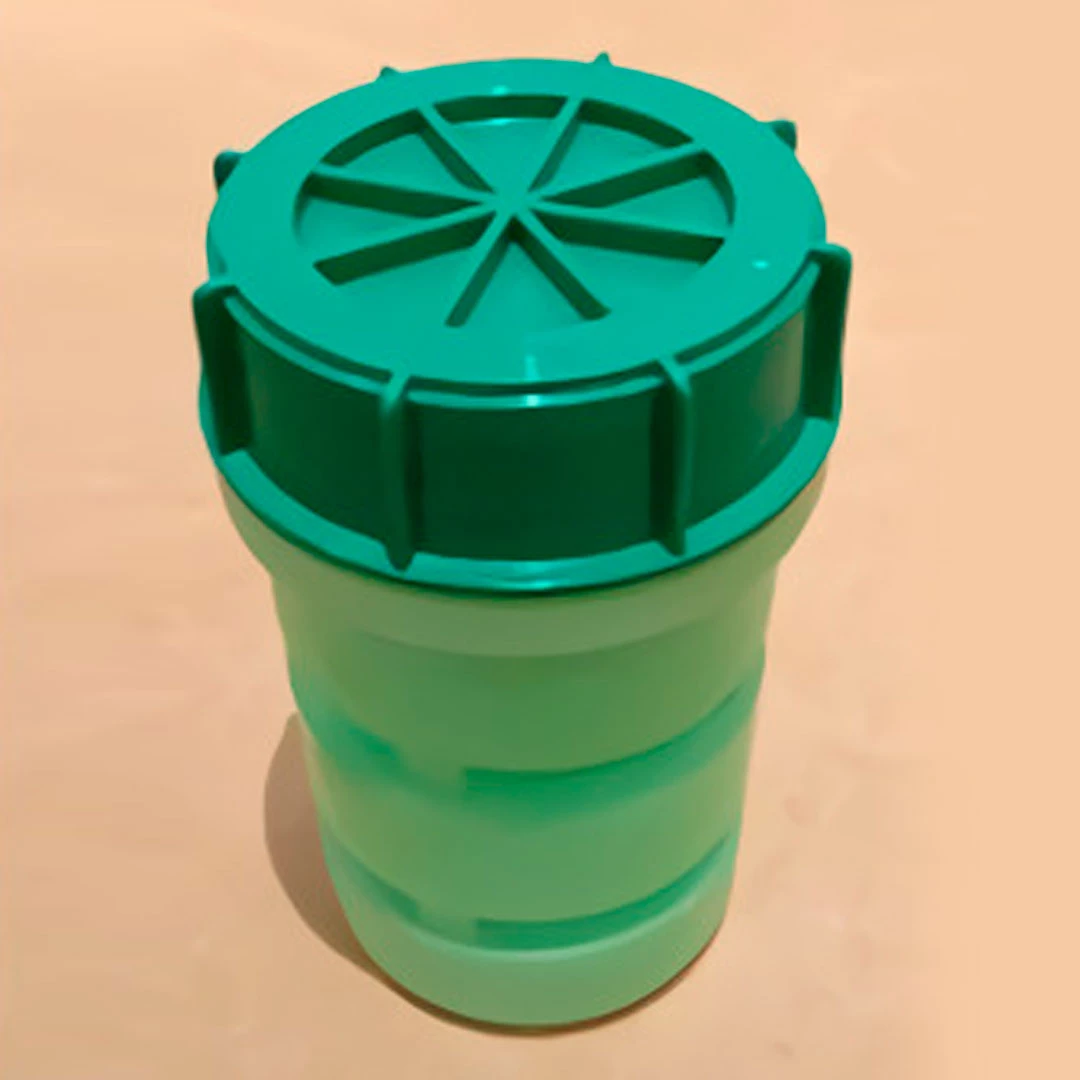

Transport container with silicone for 4 test tubes - 500 ml

Transport container with silicone sealed lid. 95 kPa approved!

​​Item number: 20001602

Delivery time: 1-3 days

Dimensions: Ø 67 x 140 mm 500 ml

Number per package: 12 pcs.

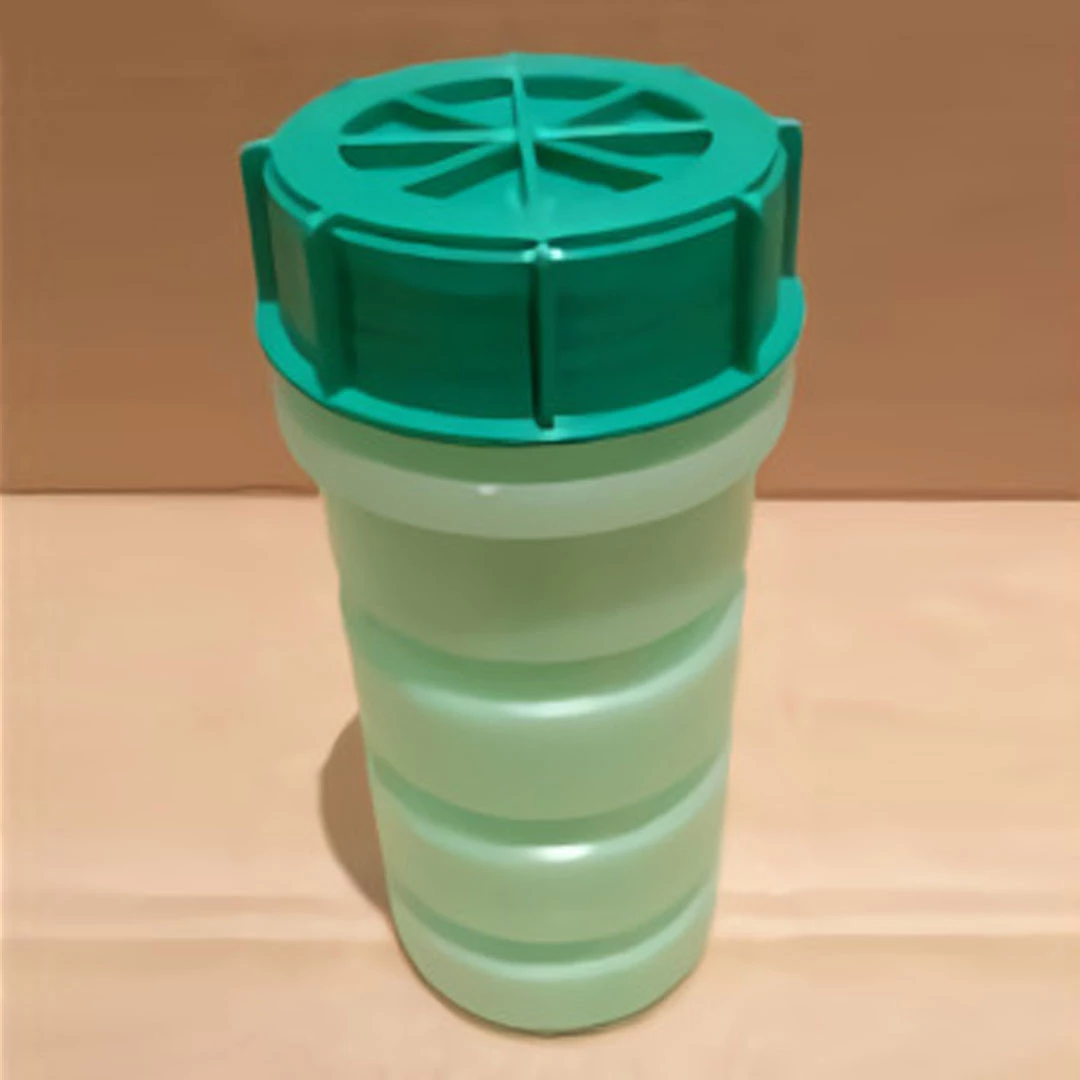

Transport container with silicone for 4 test tubes – 800 ml

Transport container with silicone-sealed lid. 95 kPa approved!

Item number: 2001602A

Delivery time: 7 days

Dimensions: Ø 67 x 185 mm 800 ml

Number per package: 12 pcs.
